品牌：MICROCHIP 型号：MCP1624T－I/CHY

Up to 96% Typical Efficiency
• 425 mA Typical Peak Input Current Limit:
- IOUT > 50 mA @ 1.2V VIN, 3.3V VOUT
- IOUT > 175 mA @ 2.4V VIN, 3.3V VOUT
- IOUT > 175 mA @ 3.3V VIN, 5.0V VOUT
@ 1 mA
• Low Operating Input Voltage: 0.35V, typical
3.3VOUT @ 1 mA
• Adjustable Output Voltage Range: 2.0V to 5.5V
• Maximum Input Voltage £ VOUT < 5.5V
• Automatic PFM/PWM Operation (MCP1624)
• PWM-only Operation (MCP1623)
• 500 kHz PWM Frequency
• Low Device Quiescent Current: 19 µA, typical
PFM mode
• Inter nal Synchronous Rectifier
• Inter nal Compensation
• Inrush Current Limiting and Internal Soft-Start
• True Load Disconnect
• Shutdown Current (All States): < 1 µA
• Low Noise, Anti-Ringing Control
• Overtemperature Protection

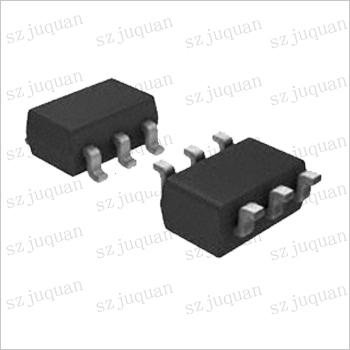

• SOT-23-6 Package
Applications:
Low-Power PIC Microcontroller Applications
